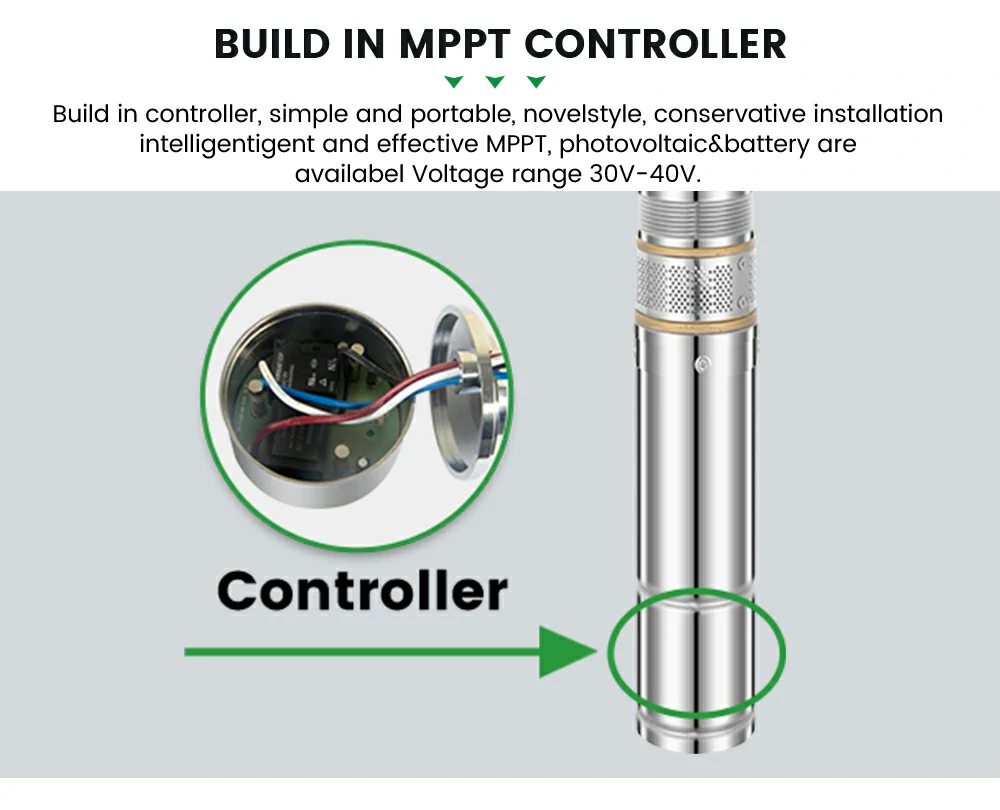

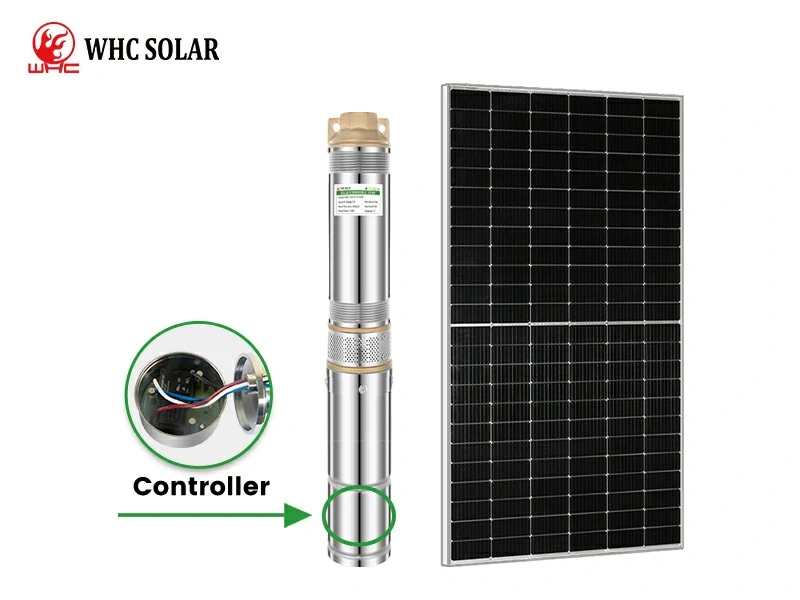

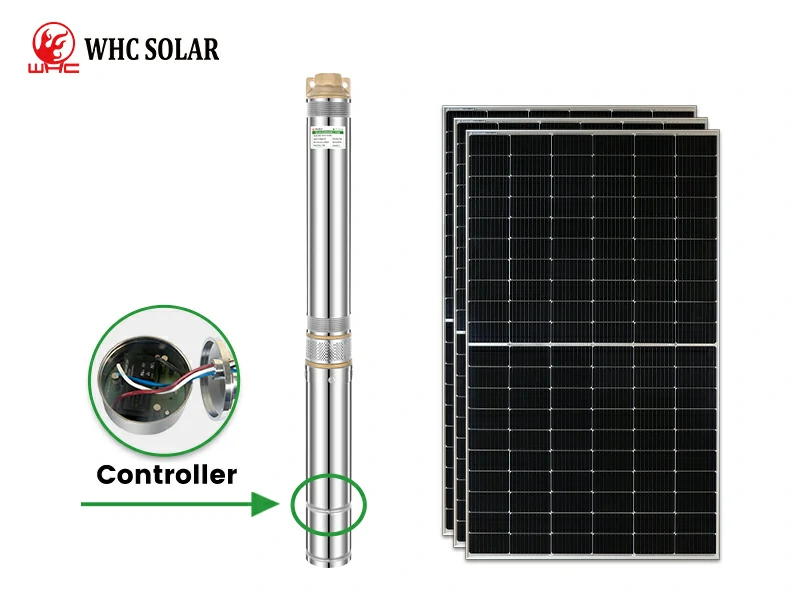

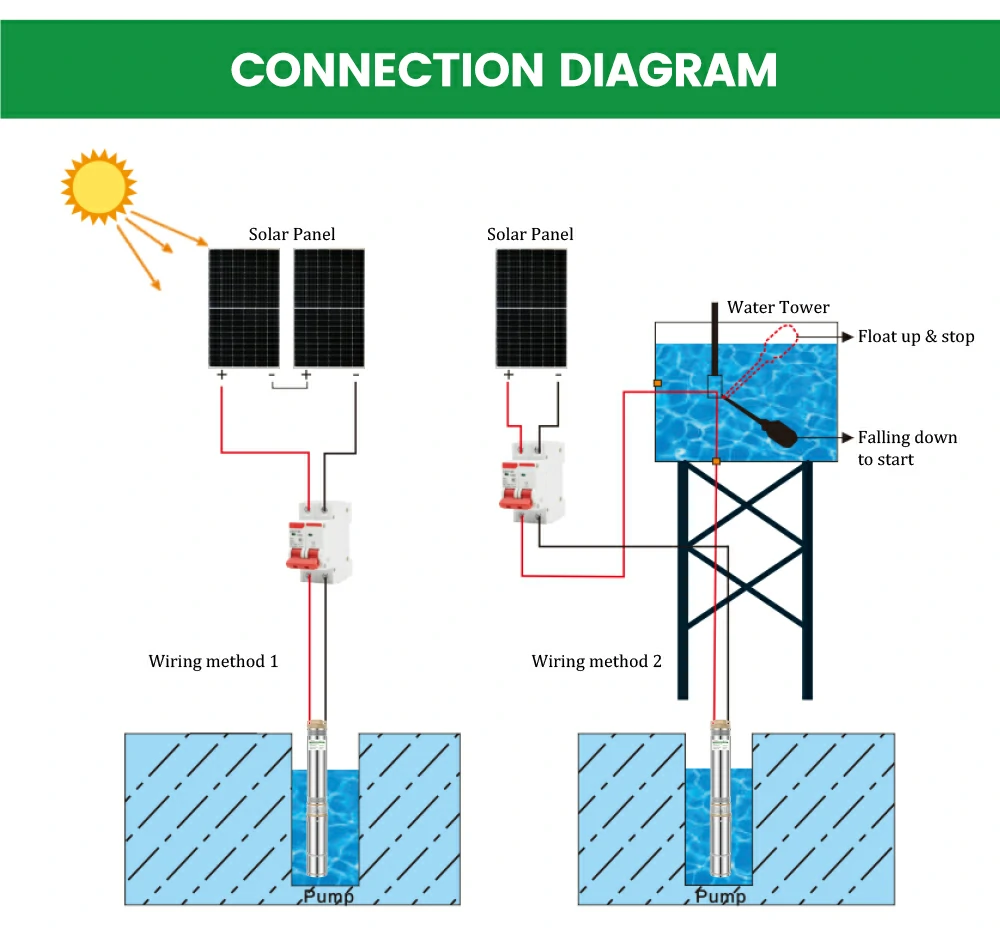

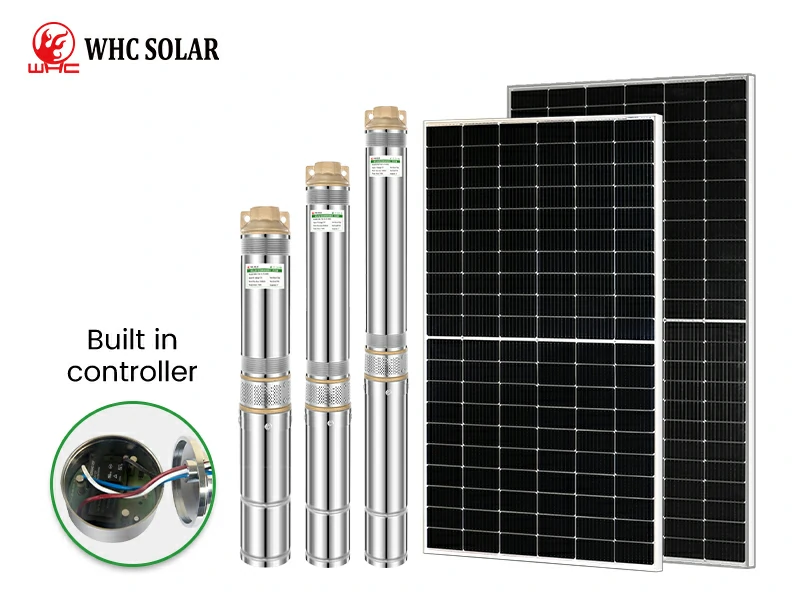

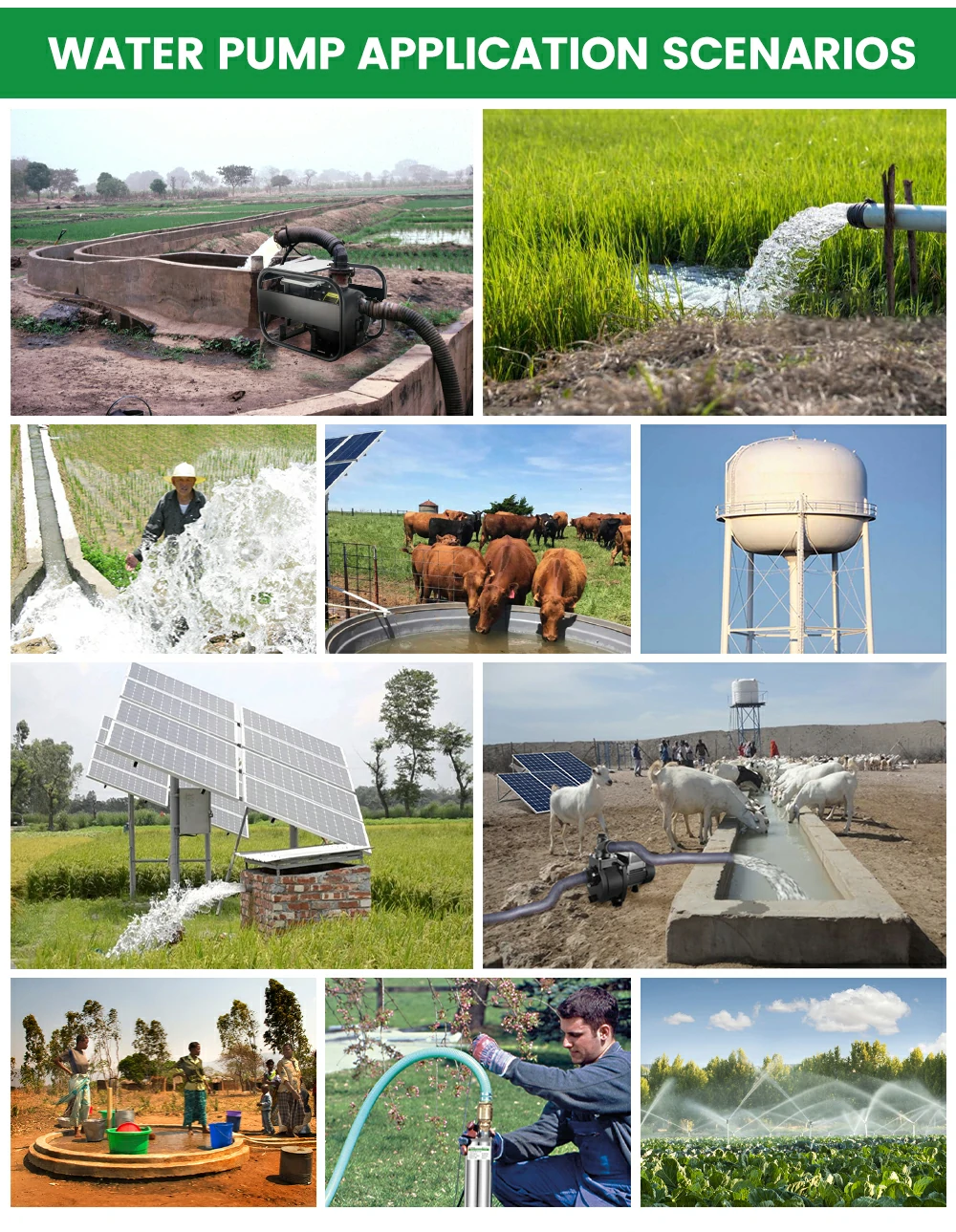

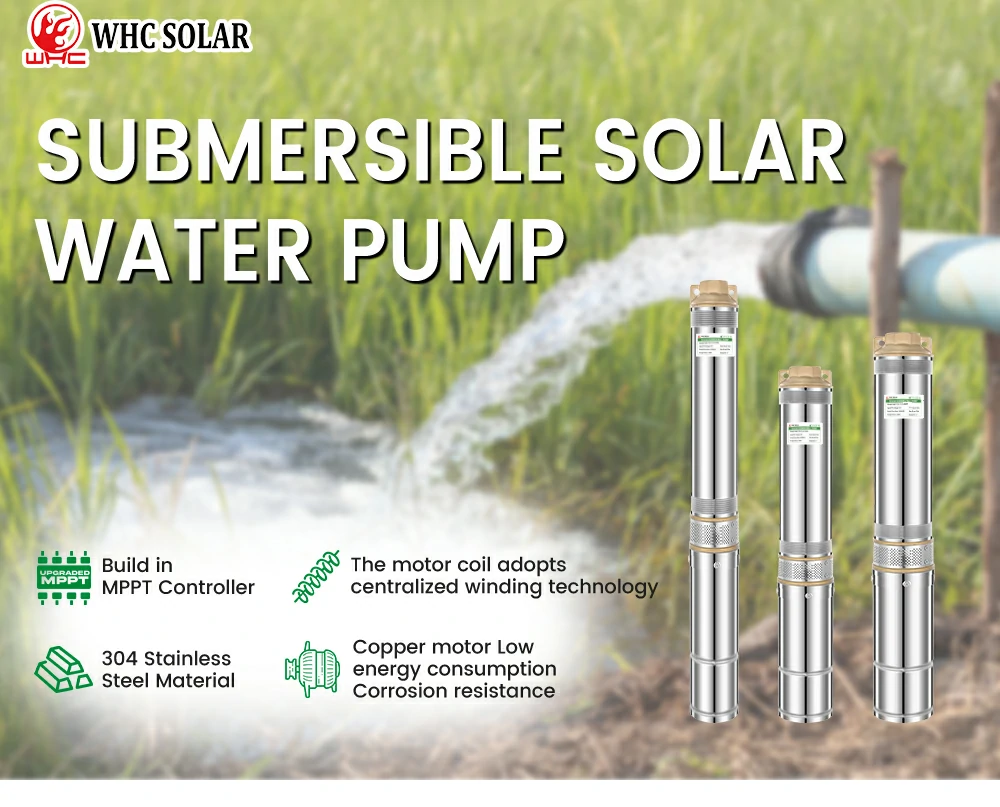

WHC Submersible Solar Water Pump build in controller is a type of water pump powered by solar panels’ electricity. The pump is usually placed underwater and can be used to pump water from a well or borehole. Solar panels are mounted on the ground and power submersible pumps, by collecting sunlight and converting it into electricity. It should be noted the pump with a diameter of 50mm can be applied to small well water intake.
Our solar power system does not emit greenhouse gasses, making them a sustainable source of electricity.
Items | Specification | Quantity |
---|---|---|
Inverter | 192V 10KW IGBT Pure Sine Wave | 1 |
Controller | 192V 60A MPPT | 1 |
Solar Panel | 330w Mono High Efficiency | 8 |
Battery | 24V 120AH Gel Batteries | 4 |
Combiner Box | N4 Waterproof IP65 | 1 |
Accessory | Battery Cable RV 1*35mm*50cm | 5 |

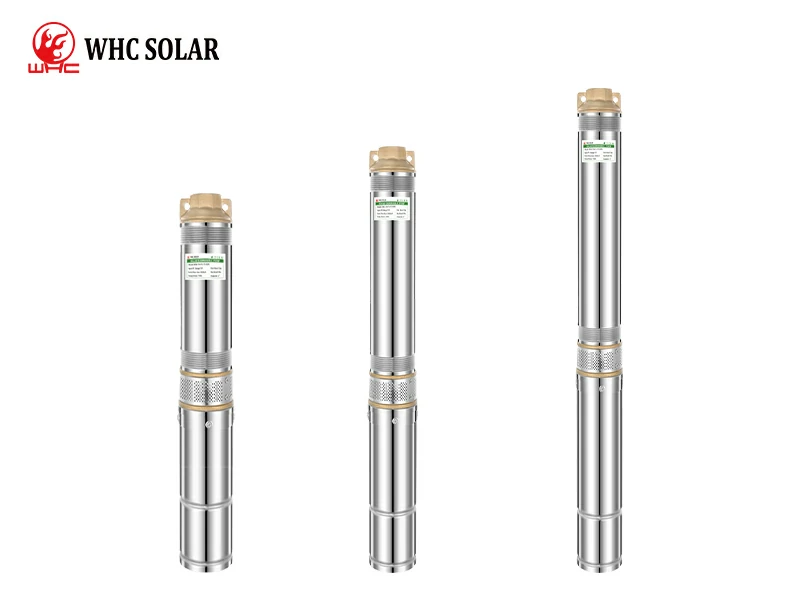

Model | Voltage | Optimum input voltage(DC) | Power | Max.Flow | Max.Head | Outlet |
WHC-4SP4.5-48/5-400W/36V | 36V | 36-42V | 400W | 4.5m³/h | 48m | 1.25″ |
WHC-4SP4.5-70/7-600W/60V | 60V | 60-84V | 600W | 4.5m³/h | 70m | 1.25″ |
WHC-4SP4.5-105/11-900W/96V | 96V | 96-124v | 900W | 4.5m³/h | 105m | 1.25″ |
