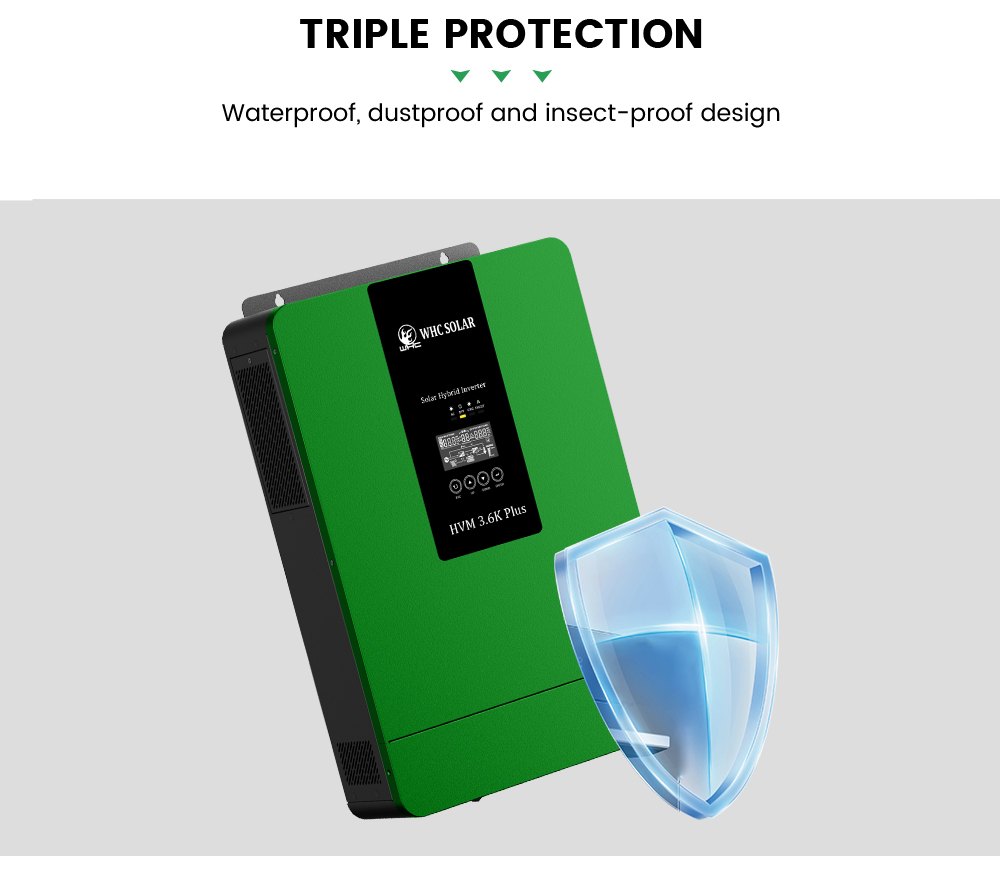

WHC HVM Plus series Hybrid Inverter offers 1.2KW, 3.6KW and 5KW optional, it’s designed for Residential PV systems. Maximum 5kW support 9 in parallel, even if one machine fails, it doesn’t affect the other machines to use. Support dust-proof, insect-proof, moisture-proof. Support multiple lithium battery brand communication. A variety of intelligent protection functions, and low aftermarket issues.
Our solar power system does not emit greenhouse gasses, making them a sustainable source of electricity.
Items | Specification | Quantity |
---|---|---|
Inverter | 192V 10KW IGBT Pure Sine Wave | 1 |
Controller | 192V 60A MPPT | 1 |
Solar Panel | 330w Mono High Efficiency | 8 |
Battery | 24V 120AH Gel Batteries | 4 |
Combiner Box | N4 Waterproof IP65 | 1 |
Accessory | Battery Cable RV 1*35mm*50cm | 5 |

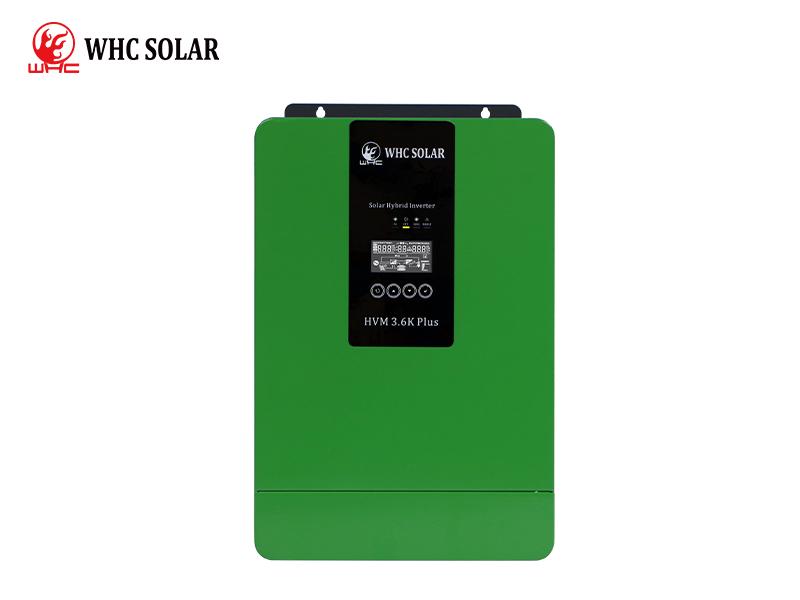

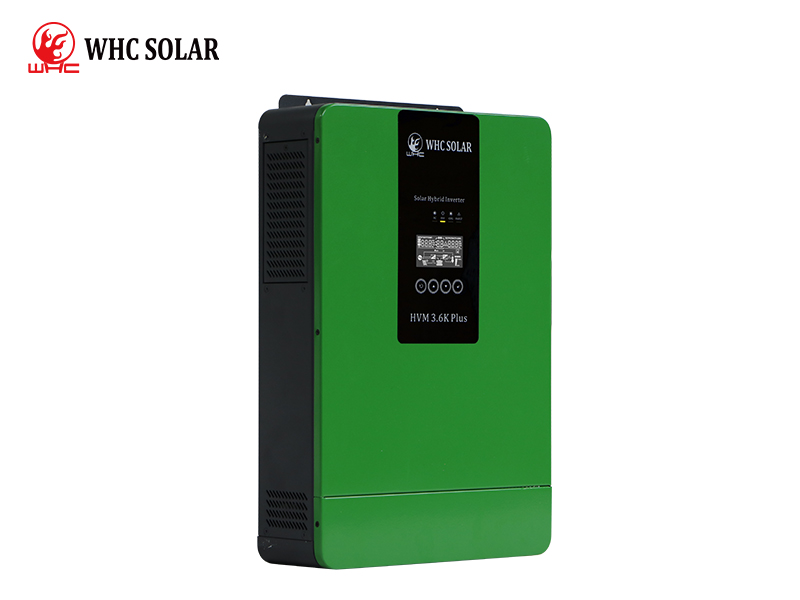

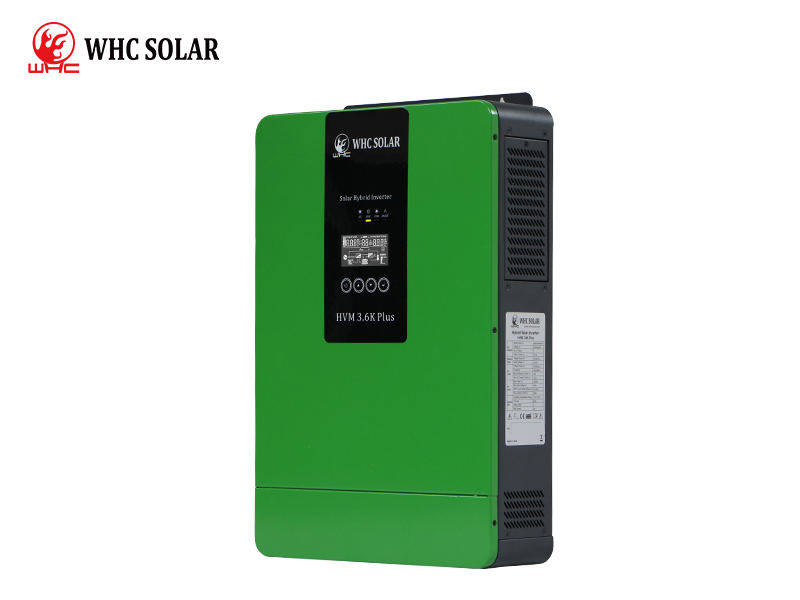

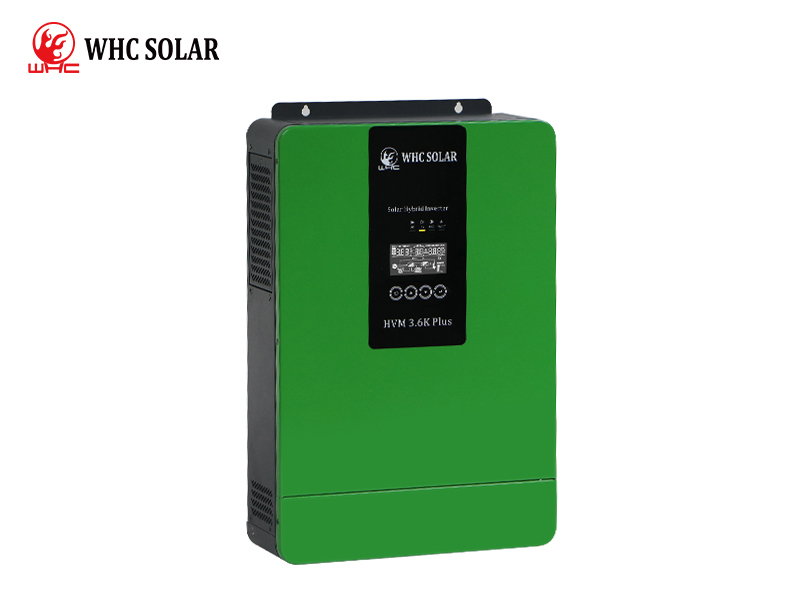

Model | HVM Plus 3.6KW |
Power | 3.6KW |
Parallel Capability | No |
AC Input | |
Nominal Voltage | 220VAC |
Acceptable Voltage Range | 170-280VAC/90-280VAC |
Frequency | 50/60Hz |
AC Output | |
Nominal Voltage | 220VAC±10% |
Surge Power | 5700VA |
Frequency | 50/60Hz |
Waveform | Pure Sine Wave |
Efficiency | 93% |
Charger(PV /AC) | |
Solar Charger Type | MPPT |
MPPT Range Operating Voltage (VDC) | 40~450V |
Max PV Open Circuit Voltage (VDC) | 500V |
Max.Charge Current(PV+AC)(A) | 100 |
Battery | |
Battery Voltage | 24VDC |
Battery Type | Lithium Battery and Lead-acid Battery |
Interface | |
HMI | LCD |
Interface | RS485 /RS232 USB /DryContact |

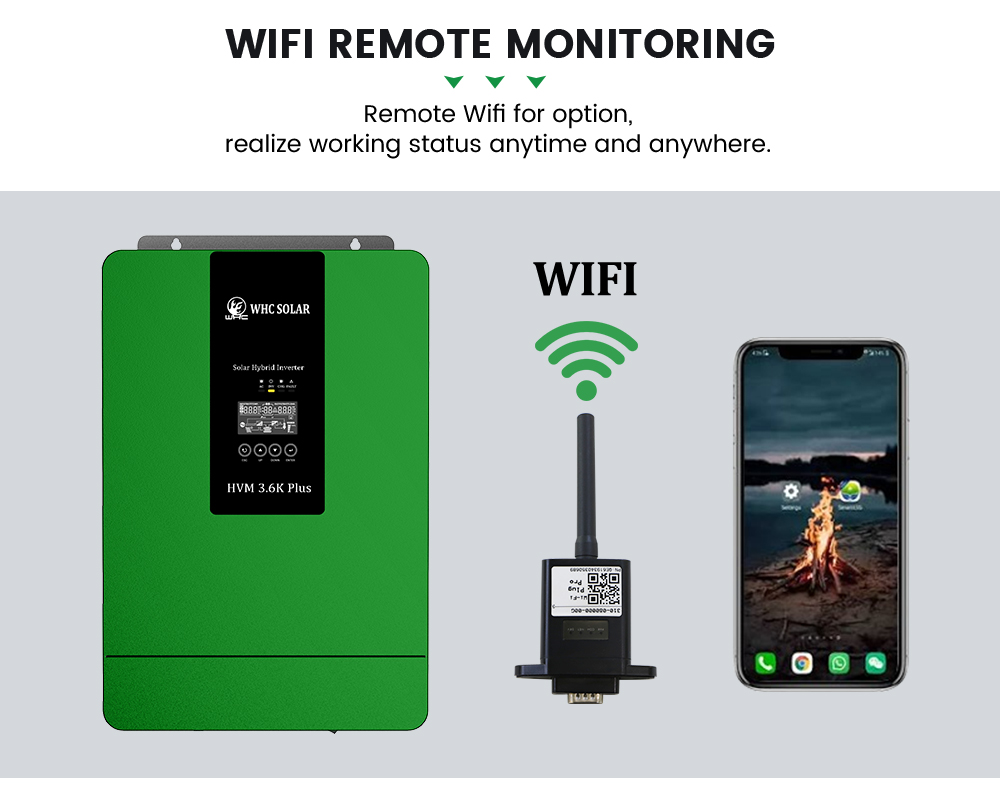

Monitoring | WiFi (Optional) |
