WHC SOLAR Powerwall 51.2V 100Ah high power 5120Wh LiFePO4 lithium iron battery module built-in BMS, 2000-6000 times long life cycle. Increased safety performance and wide operating temperature range.Rated voltage and capacity is 51.2V 100Ah, But usually called 48V 100Ah In market.
LiFePO4 Battery work with 5.5 KW Hybrid Inverter, Pure Sine Wave 5500W and MPPT 100AH Solar Controller. PV Output 500V, can load more solar panels.
1. Terminal type: M10 screw
2. Shell material: metal
3. Shell protection: IP56
4. Battery Type Chemistry: Prismatic-LiFePO4
Our solar power system does not emit greenhouse gasses, making them a sustainable source of electricity.
Items | Specification | Quantity |
---|---|---|
Inverter | 192V 10KW IGBT Pure Sine Wave | 1 |
Controller | 192V 60A MPPT | 1 |
Solar Panel | 330w Mono High Efficiency | 8 |
Battery | 24V 120AH Gel Batteries | 4 |
Combiner Box | N4 Waterproof IP65 | 1 |
Accessory | Battery Cable RV 1*35mm*50cm | 5 |
Model | WHC51.2V 100P |
Nominal Voltage | 51.2V |
Energy | 5120WH |
Cycle Life | 2000 – 6000 |
Maximum Continuous Discharge Current | 150A |
Nominal Capacity | 200AH |
BMS Discharge Current Cut-Off | 300A±100A(10mS) |
BMS Discharge Voltage Cut-Off | 58.4V |
Recommend Cut-off voltage | 40V |
Short Circuit Protection | 200-600μS |

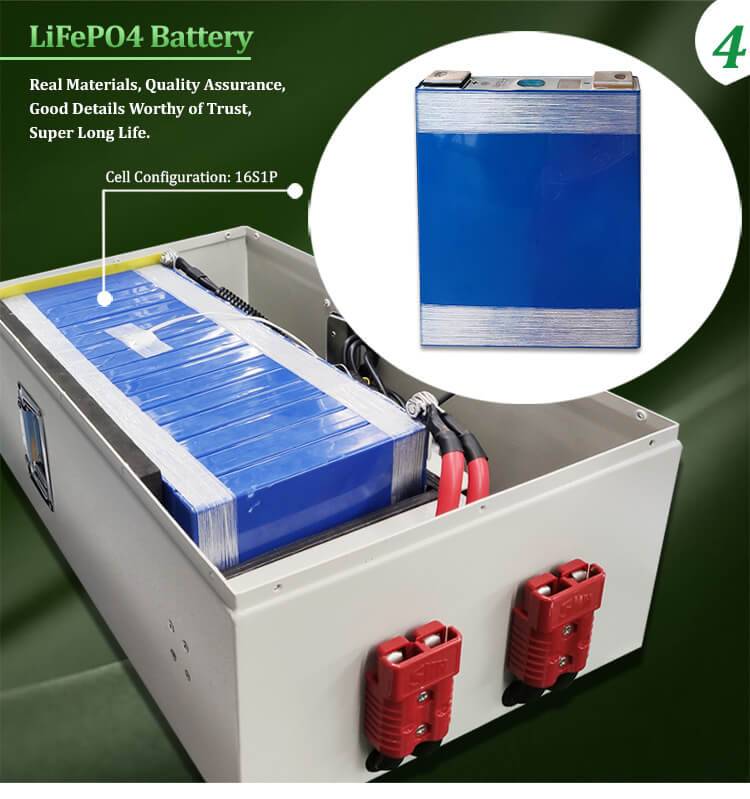

Cell Configuration | 16S1P |
Appearance Size | 550*350*248 (mm) |
Discharge Temperature Range | -4°F ~ 140°F |
Weight | 48.5kg |
Charge Temperature Range | 32°F~113°F 0*℃~ 45℃ |
CHARGE SPECIFICATIONS | |
Recommended Charge Current | 20A-50A |
Maximum Charge Current | 100A |
Recommended Charge Voltage | 56.8V-58.4V |
BMS Charge Voltage Cut-Off | 58.4V(1±0.2S) |
Charge Current (-20 to -10 ºC | ≤ 0.05 C |
